2280 PCI-E 5.0 4.0 M.2 M-Key NVME to Oculink SFF-8612 SFF-8611 & SSD Host Adapter with for NUC15 Pro Mini PC Computer Slim Type NUC15CRK

2280 PCI-E 5.0 4.0 M.2 M-key NVME to Oculink SFF-8612 SFF-8611 & SSD Host Adapter with for NUC15 Pro Mini PC Computer Slim Type NUC15CRKOnly work for NUC15 Pro Mini PC Computer Slim Type NUC15CRK, Package included oculink adapter and SSD adapter.This SSD convertor expands the 2242 M-Key system by one NVME 2280 interface. It can be connected e.g. one extra SSD for 2280, Then the orinigal 2280 slot can connector the oculink adapter.This oculink convertor expands the 2280 M-Key system by one SFF-8612 oculink interface. It can be connected e.g. one SSD or eGPU Graphics Card by using an optional cable.The card transmits PCI Express 5.0/4.0 signals using the NVMe protocol.Data transfer rate up to 64Gbps, Supports NVM Express (NVMe) 1.2. This makes it suitable for use with the pci-e4.0 generation of high-performance SSDs and other PCIe Gen5/Gen4 devices.Oculink 4x connectors are internal and external small form factor PCI-E connectors optimized for the client and market. Compatible with T10/ SAS-4 24 Gbps, SFF-8611, SFF-8612, PCIe Gen 3 and Gen 4,Gen 5;Build in PX410 PCI-Express Linear Redriver is a four-channel, low-power, high-performance linear repeater/redriver designed to support PCI Express (PCIe) Generation 1.0, 2.0, 3.0, 4.0 and 5.0. The device is a protocol-agnostic linear redriver that can operate for interfaces up to 25Gbps.

• 1) Only work for NUC15 Pro Mini PC Computer Slim Type NUC15CRK, Package included oculink adapter and SSD adapter.

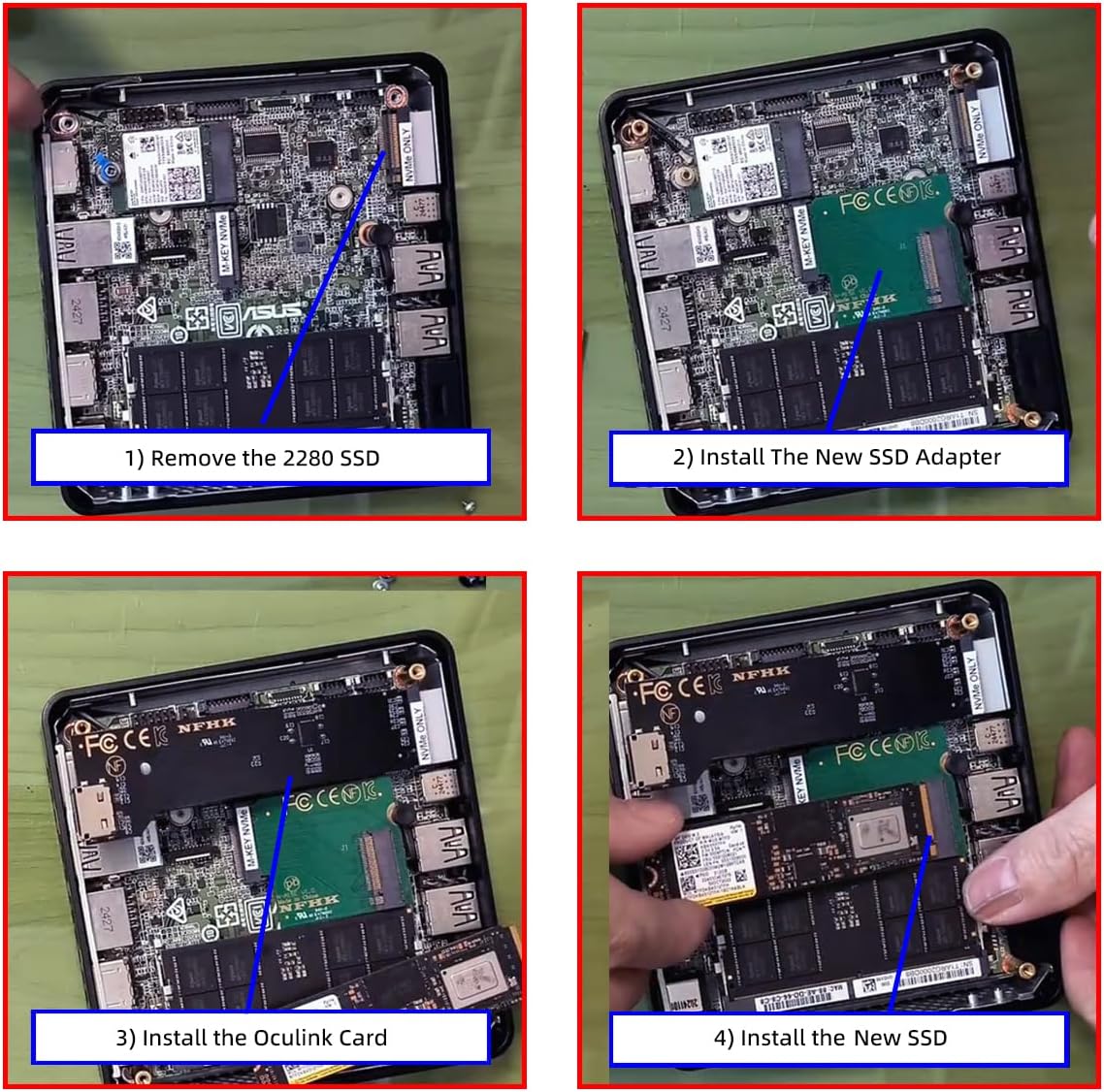

• 2) Build in PX410 PCI-Express Linear Redriver is a four-channel, low-power, high-performance linear repeater/redriver designed to support PCI Express (PCIe) Generation 1.0, 2.0, 3.0, 4.0 and 5.0.;This SSD convertor expands the 2242 M-Key system by one NVME 2280 interface. It can be connected e.g. one extra SSD for 2280, Then the orinigal 2280 slot can connector the oculink adapter.
• 3) This oculink convertor expands the 2280 M-Key system by one SFF-8612 oculink interface. It can be connected e.g. one SSD or eGPU Graphics Card by using an optional cable.
• 4) The card transmits PCI Express 5.0/4.0 signals using the NVMe protocol.Data transfer rate up to 64Gbps, Supports NVM Express (NVMe) 1.2. This makes it suitable for use with the pci-e4.0 generation of high-performance SSDs and other PCIe Gen5/Gen4 devices.
• 5) Oculink 4x connectors are internal and external small form factor PCI-E connectors optimized for the client and market. Compatible with T10/ SAS-4 24 Gbps, SFF-8611, SFF-8612, PCIe Gen 3 and Gen 4,Gen 5;
