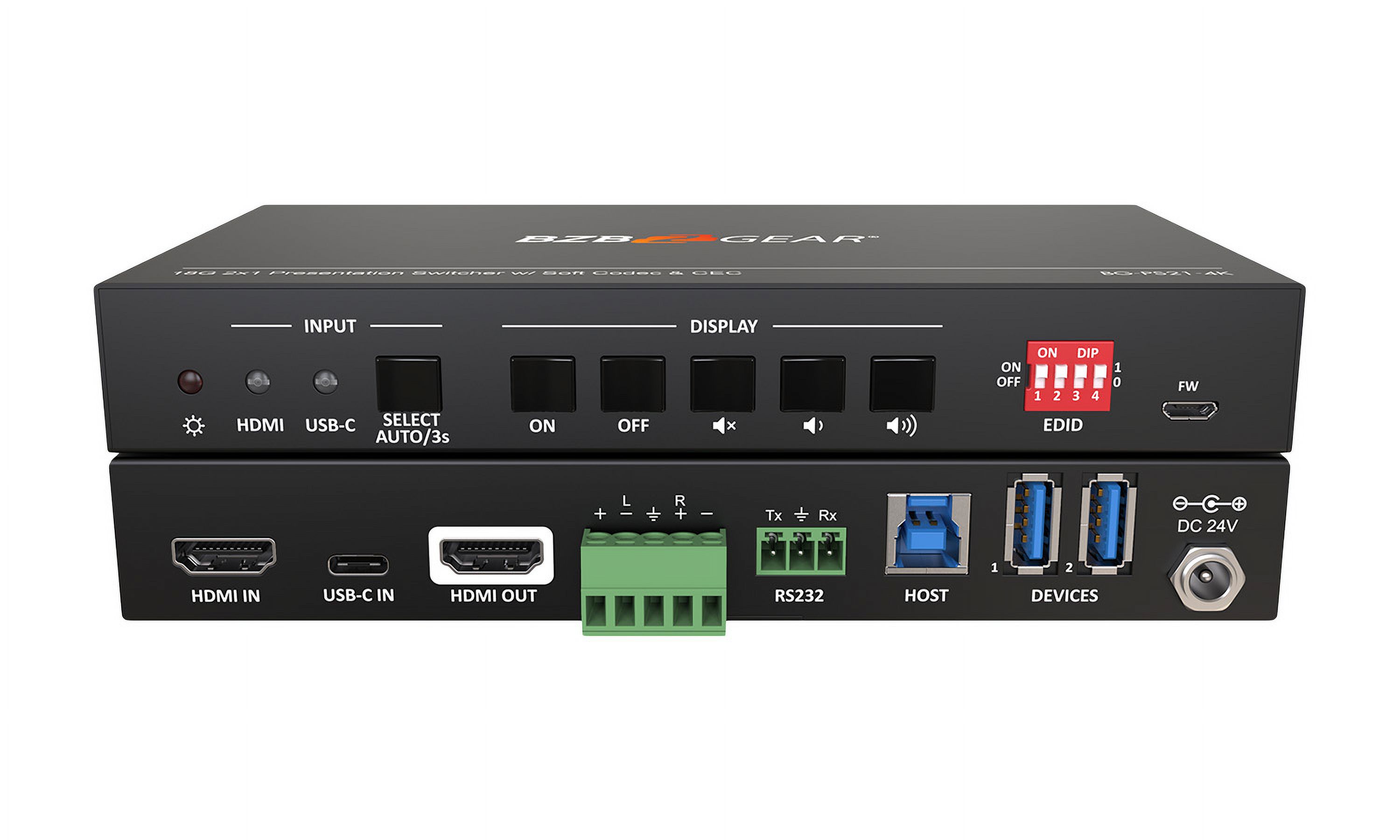

BZBGEAR 2-Port 4K UHD KVM Presentation Switcher with HDMI/USB-C Inputs and HDMI Output

<p>Built for flexible digital presentations, the BG-PS21-4K is a KVM switcher that enables two devices to be connected to the same display at output resolutions of up to 4K@60Hz. Thanks to its USB-A ports, users can control two connected devices with one mouse and keyboard. These USB peripherals can be shared between the HDMI/Host connections and the USB-C connection. The device will also automatically switch inputs when a signal is detected via HDMI.</p> <p>With the ability to de-embed audio and support for audio formats such as LPCM 7.1 audio, Dolby Digital® Plus, and DTS-HD® Master Audio™, you’ll be able to capture crystal clear audio from your presentations.</p> <h2>Connectivity &amp; Control</h2> <p>With two HDMI ports for input, the BG-PS21-4K can easily connect two separate devices. There is one HDMI output to send the signal to a single display, enabling presenters to share content during meetings. This device supports HDMI 2.0 and HDCP 2.2. The resolution for HDMI inputs supports up to 4Kx2K@60Hz. There is also a USB-C port which offers 4Kx2K@30Hz resolution. Additionally, the USB-C port provides 40 watts of charging to keep devices online through the entirety of a presentation. Auto-switching between active inputs is also supported.</p> <p>Using the two USB 3.0/2.0 type-A ports, peripherals like mice and keyboards can be connected to control active content. The unit itself can be controlled via front panel buttons of the RS-232 interface. A 4-pin DIP switch is also provided for EDID settings. A balanced audio output is also included for audio de-embedding.</p> <p>This KVM switcher is a great option for small to medium sized conference rooms needing extra connectivity for multiple presenters during meetings. Our four-device KVM switcher, the BG-UHD-KVM41 may be a better fit if more than two devices need to be connected for presentation events.</p>

• High Resolution Inputs - Input Resolutions Up To 4K2K@60Hz
• Plug and Play- Easy To Install And Use
• Multichannel Audio Supported - LPCM 7.1, Dolby Atmos®, TrueHD, Digital® Plus, DTS: X™, And DTS-HD® Master Audio™ Pass-Through
• EDID - Eliminates Connection Issues
• Auto-Switching - Automatically Selects Input When Change In Signal Is Detected
• HDCP 2.2 - High-Bandwidth Digital Content Protection Creates A Secure Source To Display Connection
• 18G 2x1 switcher with HDMI and USB-C inputs
• Supports automatic switching
• Controllable via front panel buttons and RS232
• Supports HDMI 2.0, 4Kx2K@60Hz 4:4:4, HDR 10, Dolby Vision, HDCP 2.2
• Provides charging on USB-C port up to 40W
• Provides USB data (USB 3.0/2.0) and 4K video transmission on USB-C port
• Smart EDID management for various applications and customized settings
• Balanced analog audio for audio de-embedding
• Front panel buttons trigger both CEC and RS232 commands for display control
